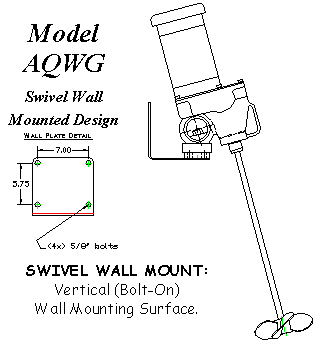

Heavy Duty Gear Driven Fixed Wall Mount with Swivel Mounted Cup Plate Portable Mixer Model AQWG- Pricing Matrix |
Industrial Portable Mixers manufactures fixed wall mounted designs with swivel mounted cup plate driven portable mixers. We also have numerous other open and closed tank (hermetically seals and pressurized} mixer design mounting options available. Please reference our mixer specifications and pricing matrix below.Today's portable mixing applications demand durable process equipment accompanied by total support for your mixing needs. We offer a complete line wall mount portable mixers. We provide superior materials of construction throughout to give each mixer the strength & reliability that ensures the performance to the standards of each Industrial Portable Mixer design. |
|
||||||||||||||||||||
Electric Motor Models - THREE PHASE MOTOR, 50/60 Hz |
||||||||||||||||||||
Model Number | Motor | HP | RPM | IMP | Shaft Length | |||||||||||||||
Type | Phase | Voltage | 60" | 72" | 84" | 98" | ||||||||||||||
AQWG-25 | TEFC | 3 | 208-230/460 | 1/4 | 350 | (1) 10" | $2,067 | $2,183 | $2,915 | $3,154 | ||||||||||
AQWG-33 | TEFC | 3 | 208-230/460 | 1/3 | 350 | (1) 11" | $2,080 | $2,196 | $2,928 | $3,167 | ||||||||||
AQWG-50 | TEFC | 3 | 208-230/460 | 1/2 | 350 | (1) 12" | $2,088 | $2,234 | $2,967 | $3,205 | ||||||||||
AQWG-75 | TEFC | 3 | 208-230/460 | 3/4 | 350 | (1) 13" | $2,163 | $2,280 | $3,012 | $3,251 | ||||||||||
AQWG-100 | TEFC | 3 | 208-230/460 | 1 | 350 | (1) 14" | $2,207 | $2,323 | $3,055 | $3,294 | ||||||||||
AQWG-150 | TEFC | 3 | 208-230/460 | 1.5 | 350 | (1) 15" | $2,254 | $2,370 | $3,102 | $3,341 | ||||||||||
AQWG-200 | TEFC | 3 | 208-230/460 | 2 | 350 | (1) 16" | NA | NA | $3,144 | $3,382 | ||||||||||
AQWG-300 | TEFC | 3 | 208-230/460 | 3 | 350 | (1) 18" | NA | NA | $3,270 | $3,509 | ||||||||||
Electric Motor Models - SINGLE PHASE MOTOR, 60 Hz |
||||||||||||||||||||
Model Number | Motor | HP | RPM | IMP | Shaft Length | |||||||||||||||
Type | Phase | Voltage | 60" | 72" | 84" | 98" | ||||||||||||||
AQWG-25 | TEFC | 1 | 115/208-230 | 1/4 | 350 | (1) 10" | $2,102 | $2,218 | $2,951 | $3,189 | ||||||||||
AQWG-33 | TEFC | 1 | 115/208-230 | 1/3 | 350 | (1) 11" | $2,141 | $2,257 | $2,989 | $3,228 | ||||||||||
AQWG-50 | TEFC | 1 | 115/208-230 | 1/2 | 350 | (1) 12" | $2,179 | $2,295 | $3,028 | $3,266 | ||||||||||
AQWG-75 | TEFC | 1 | 115/208-230 | 3/4 | 350 | (1) 13" | $2,258 | $2,375 | $3,017 | $3,346 | ||||||||||
AQWG-100 | TEFC | 1 | 115/208-230 | 1 | 350 | (1) 14" | $2,344 | $2,461 | $3,193 | $3,432 | ||||||||||
AQWG-150 | TEFC | 1 | 115/208-230 | 1.5 | 350 | (1) 15" | $2,527 | $2,643 | $3,375 | $3,614 | ||||||||||
Air Motor Models |
||||||||||||||||||||
Model Number | Motor | HP | RPM | IMP | Shaft Length | |||||||||||||||
Type | Pres. | Flow | 60" | 72" | 84" | 98" | ||||||||||||||
AQWGA-75 | Air | 100# | 30 CFM | 3/4 | 30-600 | (1) 12" | $2,162 | $2,177 | $2,909 | $3,148 | ||||||||||
AQWGA-150 | Air | 100# | 72 CFM | 1-1/2 | 30-600 | (1) 14" | $2,267 | $2,282 | $3,014 | $3,252 | ||||||||||
AQWGA-400 | Air | 100# | 130 CFM | 4 | 30-600 | (1) 18" | $2,418 | $2,432 | $3,165 | $3,403 |
